Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: conical vacuum dryer
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Type: |
Double Cone Conical Drying Machine |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Material: |
SS304 316 |
Type: |
Double Cone Conical Drying Machine |
Power: |
0.75KW-7.5KW |
Total Volume: |
100-500L |
Working Volume: |
50-2500L |
Total Weight: |
825-6000kg |
Heating Area: |
1.16-14.1㎡ |
Warranty: |
1 Year |
Heating Source: |
Hot Water/Steam/Thermal Oil |
Drying Efficiency: |
90% |
Rotating Height: |
1810-4180 |
Material: |
SS304 316 |

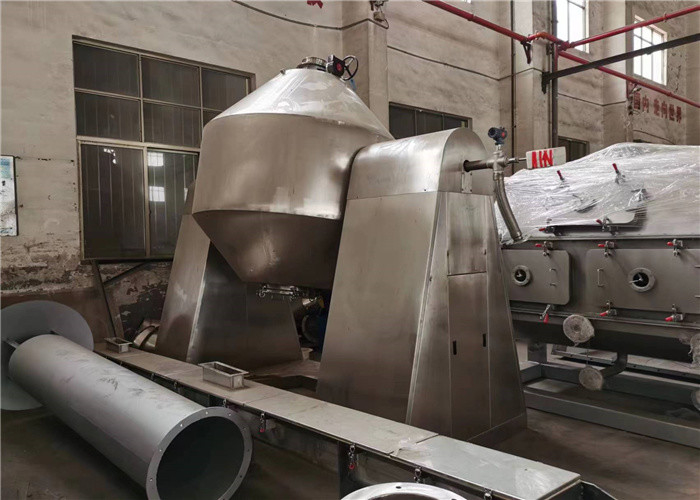

Food Chemical Industry Rotary Vacuum Double Cone Conical Drying Machine
Product Description
SZG Vacuum Dryer is my factory in the light of similar products drying technology to develop a new generation device, with double cone vacuum belt, chain two flexible connectivity options, thereby equipment running smoothly. Equipment specially designed, fully embodied the two concentric axis of good, HTM and vacuum systems are reliable U.S. technology rotary joints. On this basis, we have developed a SZG-A, it can stepless speed regulation, but also for temperature control.
As a professional drying equipment factory, we Baitusi service users each year, factory products from the high-temperature heat-conducting oil for heat transfer media, steam temperature and low temperature hot water readily available. Drying viscous materials, the factory will be in the tank for your particular design "Flights of the" structure or set up Ball.
Principle
As a specialized company in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you. The biggest may be 8000L. Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized; The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material reach the state of saturation and evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can berealized within a short time.
Technical parameters
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
Features
1. heat source pass through the sealed jacket
2. the heat will be transmitted to the raw material to be dried through inner shell
3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized
4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate
5. the solvent will be discharged through vacuum pump
6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
