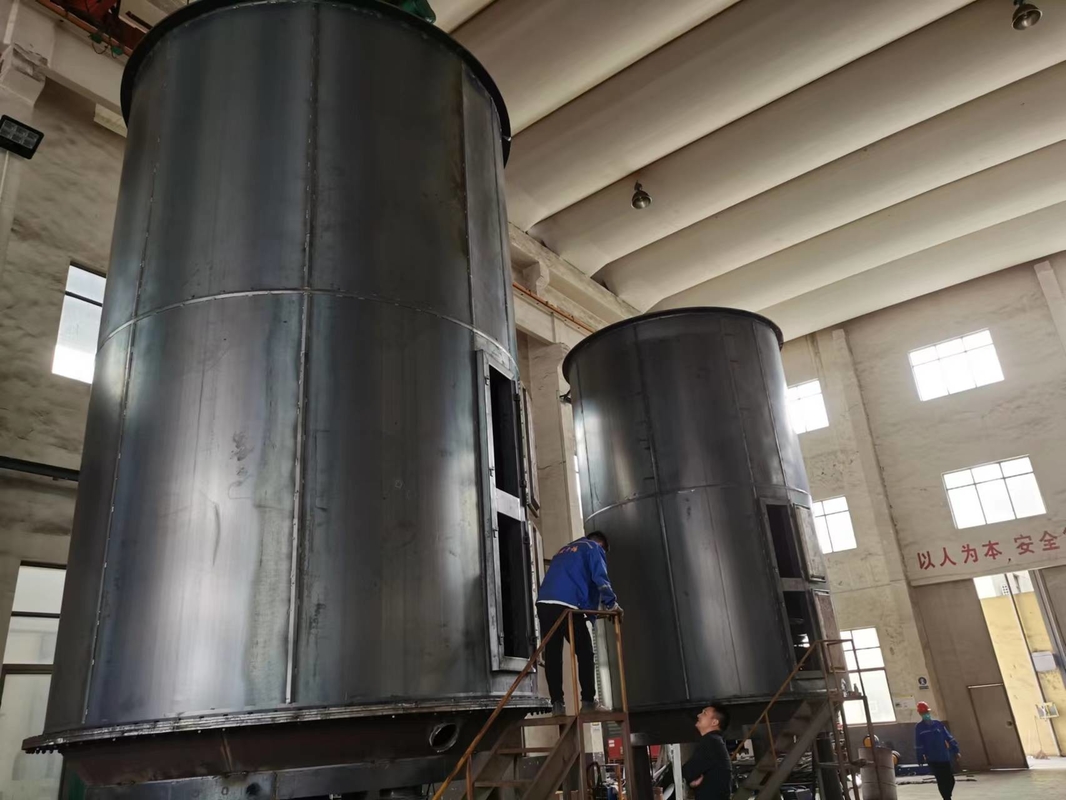

SUS304 Continuous Disc Plate Dryer Electricity 5000 Kg/H

PLG Series Continuous Disc Plate Dryer Packing Method Base On Customers' Requirement

PLG series continuous plate dryer is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency, low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. Plate dryer is widely used in drying process in the fields of chemical, pharmaceuticals, agricultural chemicals, foodstuff, fodder, process of agricultural and by-products etc., and is well received by various industries. Now there are three big categories, normal pressure, closed and vacuum styles and four specifications of 1200, 1500, 2200 and 2500; and three kinds of constructions A (carbon steel), B(stainless steel for contact parts) and C (on the basis of B to add stainless steel for steam pipes, main shaft and support, and stainless steel linings for cylinder body and top cover). With a drying area of 4 to 180 square meters, now we have hundreds of models of series products and various kinds of auxiliary devices available to meet requirements of various products.

Technical parameters

Principle:

Wet materials are fed continuously to the first drying layer on the top of the dryer. They will be turned and stirred by rakes when the rake arm rotates and flow through the surface of the drying plate along the exponential helical line. On the small drying plate they will be moved to its outer edge and drop down to the outer edge of the large drying plate underneath, and will be moved inward and drop down from its central hole to the small drying plate on the next layer. Both small and large drying plates are arranged alternately so as materials can go through the whole dryer continuously. The heating media, which could be in forms of saturated steam, hot water or heat conducting oil will be led into hollow drying plates from one end to the other end of the dryer, The dried materials will drop from the last layer of the drying plate to the bottom layer of the shell body and will be moved by rakes to the discharge port. The moisture escapes from materials and will be removed from the moist discharge port on the top cover, or sucked out by the vacuum pump on the top cover for vacuum type plate dryer. The dried materials discharged from the bottom layer can be packed directly. The drying capability can be raised up if equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism for dried materials and drawing fan etc. Solvent in those dried paste and heat sensitive materials can be easily recovered, and thermal decomposition and reaction can be also carried out.

Plate Dryer Features

1. Easy control, wide application

(1) Regulate thickness of materials, rotating speed of main shaft, number of harrow’s arm, style of and sizes harrows achieve best drying process.

(2) Each layer of drying plate can be fed with hot or cold media individually to heat or cold materials and make temperature control accurate and easy.

(3) Dwell time of materials can be accurately adjusted.

(4) Single flowing direction of materials without return flowing and mixing, uniform drying and stable quality, no re-mix is required.

2. Easy and simple operation

(1) Start stop of dryer is quite simple

(2) After material feeding is stopped, they can be easily discharged out of the dryer by harrows.

(3) Careful cleaning and observation can be carried inside the equipment through large-scale viewing window.

3. Low energy consumption

(1) Thin layer of materials, low speed of main shaft, small power and energy required for conveying system of materials.

(2) Dry by conducting heat so it has high heating efficiency and low energy consumption.

4. Good operation environment, solvent can be recovered and powder discharge meet the requirements of exhaust.

(1) Normal pressure type: as low speed of air flow inside the equipment and moisture being high in upper part and low in lower part, dust powder couldn’t float to the equipment, so there is almost no dust powder in tail gas discharged from the moist discharge port on the top.

(2) Closed type: equipped with solvent recovery device that can recover organic solvent easily from moist-carrier gas. The solvent recovery device has simple structure and high recovery rate, and nitrogen can be used as moist-carrier gas in closed circulation for those subject to burning, explosion and oxidation, and poisonous materials in order for safe operation. Especially suitable for drying of flammable, explosive and poisonous materials.

5. Easy installation and small occupying area.

(1) As the dryer is in a whole for delivery, it is quite easy to install and fix at site only by hoisting.

(2) As drying plates being arranged by layers and installed vertically, it takes a small occupying area though drying area is large.
