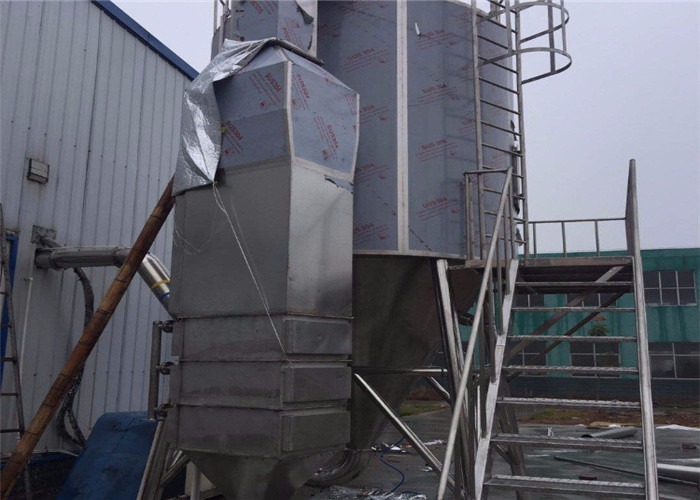

LPG-25 Dyestuff Spray Dryer High Speed Stainless Steel 304

High Speed Centrifugal Atomizer Starch Liquid/Powder Spray Drying Machine

Spray dryer

1. Product quality and properties can be effectively controlled and maintained through the entire drying operation.

2. Thermolabile products/ pharmaceuticals can be dried at atmospheric pressure and low temperature.

3. Spray dryer permits high- tonnage production in continuous operation adaptable to conventional PLC control (Programmable Logic Controller) and it is relatively simple to operate.

4. Feedstock in solution, slurry, emulsion, paste, and melt form can be dried if pumpable.

5. Corrosion problem is minimal and the selection of materials of construction of spray dryer is simplified since the dried material comes in contact with the equipment surfaces in an anhydrous condition.

6. Spray dryer produces dry powder particles of controllable particle size, shape, form, moisture content, and other specific properties irrespective of dryer capacity and heat sensitivity.

7. Spray dryer handles a wide range of production rates and provides extensive flexibility in its design that is product specification are readily met through the selection of appropriate spray dryer design and its operation from a wide range of available design.

8. It is an energy-intensive equipment because;

1. 1. Specific heat of evaporation can be supplied in a short time.
   2. The temperature difference across the drying chamber is relatively small and
   3. An appreciable amount of heat is lost with exhaust air.

Features


(1) Fast drying speed, material liquid after atomization, significantly increased surface area, in the hot air flow, instantaneous evaporation can be 95% 98% moisture, to complete the drying time only a few seconds, and especially suitable for drying of thermal sensitive material.

(2) Products with good uniformity, fluidity and solubility, the product high purity, good quality.

(3) Production process is simple, convenient operation and control. Special material for 40-60% moisture content (90%) of the liquid to a dry powder products, dried without crushing and screening, reduce the production process, improve product purity. To the product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management is very convenient.

Centrifugal spray atomizer Features

1.The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.


2.Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.


3.The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Technical parameters


Applications

Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.

Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.

Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.

Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.


In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:

• -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.

• -What is the capacity per hour you need (kg/h)?

• -What is the initial moisture and final moisture of finished products you require to get?

• -What about the maximum heat temperature of raw material?

• -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?

• -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?

• -Provide us your country’s electricity information, such as phases, voltage, HZ?

• -How about dust collect requirements?

• -Other special requirements?
