Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: DW
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |

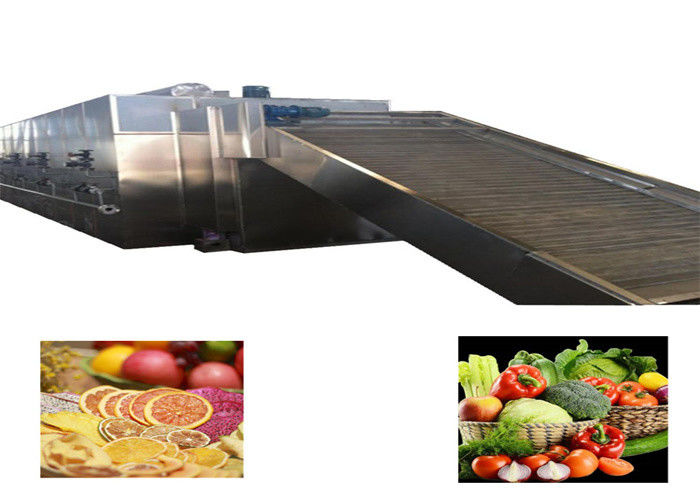

Continous Mesh conveyor belt tunnel type turn-over hot air dryer for vegetables and meat
Introduction & working principle
Fresh materials sent by conveyor to feeding inlet and continuous tile to the upper transmission belt , upper belt forward through heating section and transfer to the second layer belt …… Finally dried material discharge from outlet to complete the drying process.
Advantages
Heat source: biomass, electricity,steam,gas,coal(Option)
1- hot air from bottom-up and top-down cross through material, increase the contact area with the hot air of material, improve drying speed.
2- At the bottom of the inner cavity full welding, rounded corners, makes the machine in working condition with the outside world without wind phenomenon, convenient cleaning and ensure no water inside the equipment.
3- It equipped with mandatory dehumidification , most using hot air recycling to save energy, part of the air discharged from chamber to ensure product quality.
4- Using with fully enclosed structure, ensuring material is not contaminated, improve the thermal efficiency, improve working conditions.
5- Adopt unique internal air supply device, can not only improve material and the relative velocity of hot air, improve drying speed, and guarantee uniform drying.
Technical parameters
| spec | unit | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-12 |
| unit number | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | 5*3 | |
| drying length | m | 24 | 30 | 24 | 30 | 24 | |
| thickness of material | mm | 10-80 | |||||
| temperature | ℃ | 60-130 | |||||
| steam pressure | Mpa | 0.2-0.8 | |||||
| steam consumption | kg | 360-1350 | |||||
| drying strength | kg/h | 150-900 | |||||
| power | kw | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
Application
The mesh belt hot air dryer widely dry food,seafood,vegetables, spices, solid materials etc..., such as coconut slices,tea leaf, leaf vegetables, chilli, okra, daylily, rose flowers,moringa leaves, moringa seed,shrimp skin, shrimp head,white radish, carrot,hop beer, clay bean, cardamom, nutmeg,hemp, bay leaf, cinnamon etc...
Please contact me for double confirm if you not sure this type dryer suitable for your products
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
