Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: DW
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |

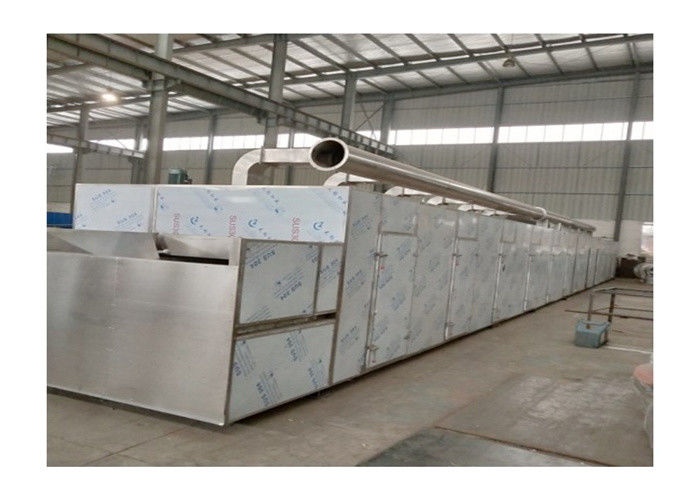

Continuous Industrial Conveyor Mesh Belt Dryer for Fruit Vegetable Seaweed Pepper Herb Chilli Coconut
Description of Mesh Belt Dryer
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.
Features of Conveyor Mesh Belt Dryer
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
Technical parameters
| spec | unit | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-12 |
| unit number | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | 5*3 | |
| drying length | m | 24 | 30 | 24 | 30 | 24 | |
| thickness of material | mm | 10-80 | |||||
| temperature | ℃ | 60-130 | |||||
| steam pressure | Mpa | 0.2-0.8 | |||||
| steam consumption | kg | 360-1350 | |||||
| drying strength | kg/h | 150-900 | |||||
| power | kw | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
Application of Mesh Belt Dryer
The Industrial continuous mesh belt dryer machine is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Company Introduction
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
