Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: DW
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |
Condition: |
New |
Voltage: |
220v-450v |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Drying Strength: |
150-900kg/h |
Quantity Of Uni: |
4*3 -5*3 |
Length Of Drying: |
24m-30m |
Material: |
Stainless Steel, Carbon Steel |
Temperature: |
50-140℃ |
Power: |
35.3-72.5kw |

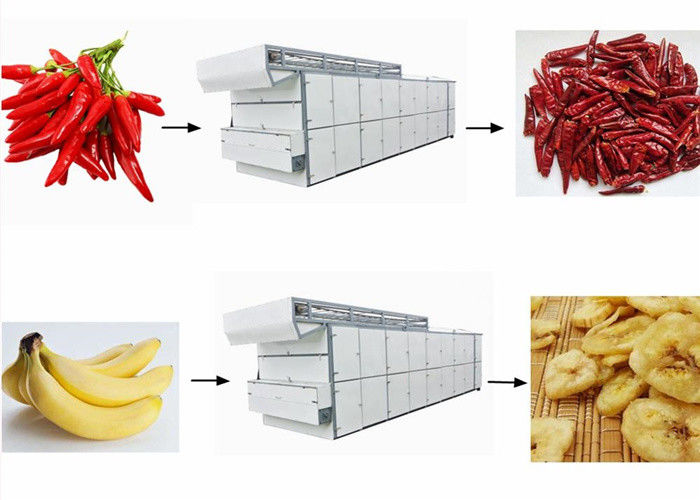

Large-scale Continuous Drying Equipement DW Muti- Layer Mesh Belt Dryer for Food and Vegetables
Product Description
The mesh belt dryer is a food drying equipment, which can dry various materials, such as: agricultural product drying, Chinese herbal medicine drying, fruit drying, feed drying, tea drying, nut drying, chili drying , jujube drying, garlic drying, vegetable drying, etc. According to the characteristics of the product, the adjustment speed, wind speed, and temperature can be adjusted to achieve the stability of the product drying. This series of dryers have the advantages of fast drying speed, high evaporation strength and good product quality.
Advantage
1. Reasonable structure, convenient installation, smooth operation, simple use and long service life;
2. Unique sealing device makes the distribution of hot air more uniform and ensures the consistency of product quality;
3. Can adjust air volume, heating temperature, material residence time and feeding speed to achieve the best drying effect;
4. Most air is recycled and highly energy efficient
Features
1. Fast heating rate: high efficiency, local heating and energy saving
Technical parameters
| spec | unit | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-12 |
| unit number | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | 5*3 | |
| drying length | m | 24 | 30 | 24 | 30 | 24 | |
| thickness of material | mm | 10-80 | |||||
| temperature | ℃ | 60-130 | |||||
| steam pressure | Mpa | 0.2-0.8 | |||||
| steam consumption | kg | 360-1350 | |||||
| drying strength | kg/h | 150-900 | |||||
| power | kw | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.
Application
The cassava dryer mainly used for drying kiwi fruit,orange,banana,longan,lemon and so on.And it also can dry all kinds of vegetables and nuts,such as carrot,chili,mushroom,garlic, pistachio nuts,walnut,melon seeds ect.
Company Introduction
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
