Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: XSG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |

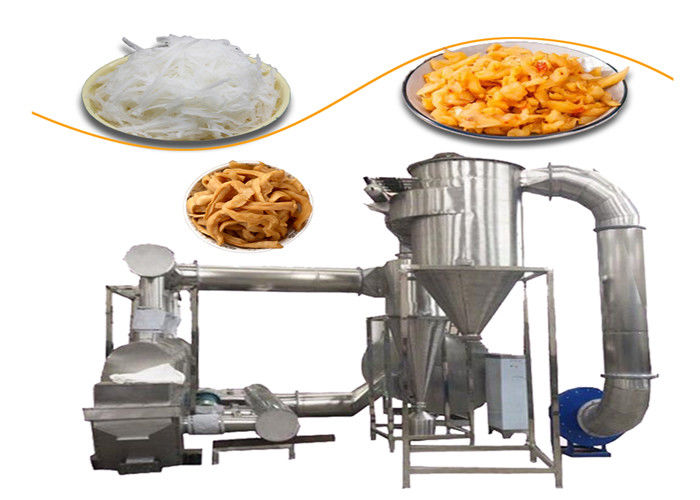

High quality Calcium carbonate hot air drying machine spin flash dryer with drying Spare Parts
In the ceramic industry, rotary flash dryer is widely used for drying kaolin or bentonite. The final product dried by rotary flash dryer in fine powder, the particle size is uniform and moisture content is low. Its drying time is short and energy consumption is low.
Following is a diagram of XSG-6 rotary flash dryer for reference. In the diagram, heating source is steam. In actual situation, heating source also can be thermal, gas/ oil/ coal hot air furnace:
XSG Rotary Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.
Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
Application
Ceramic industry: Kaolin, bentonite, clay, etc.
Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.
Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.
Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.
Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.
Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc.
1 There are several feeding systems available, we can get stable stable feeding without bridging phenomenon
2 There has cooling system on agitating part of dryer, avoiding over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final moisture content of product is adjustable.
6 It could increase bulk density of product compared with other drying equipments
7 There has high spiral air speed inside dryer, drying time is short, it could prevent wall-stick problem, and metamorphism of heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying efficiency.
10 Strong disintegrating system and spiral hot air could crush material, and obtain fine, uniform product.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
