Product Details
Place of Origin: China
Brand Name: JingSu ShengMan
Certification: CE and ISO9001
Model Number: XSG
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD20000-USD300000
Packaging Details: Plywood Cases
Delivery Time: 60-90days
Payment Terms: L/C, T/T
Supply Ability: 10sets
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |
Condition: |
New |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Type: |
Flash Dryer |
Water Evaporation: |
10-2000 |
Power: |
5-135kw |
Weight: |
Customized |
Capacity: |
5-500kg/h |
Voltage: |
220V/380V |
Barrel Diameter: |
200-1600mm |

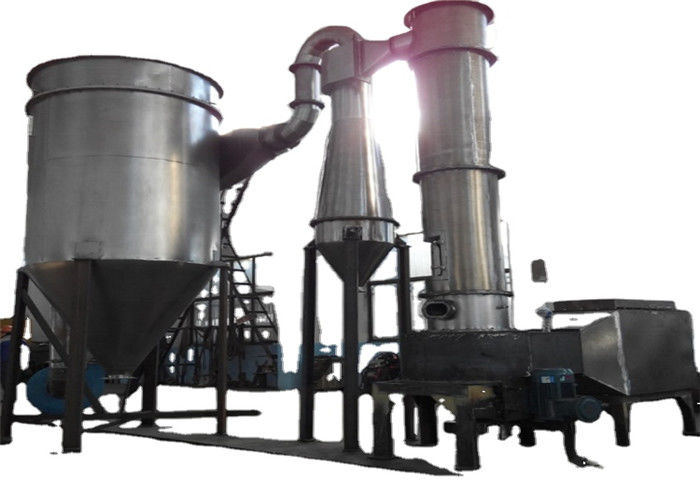

Factory Supply XSG Revolving Flash Vaporation Dryer for Food such as Soya Protein, tritcin, Cassava Flour
Product Description
Absorbed the foreign advanced equipment and technology,our factory and Shenyang Chemical Research Institute of the Chemical Ministry of the State have developed this machine.This is a new kind of drying equipment used for drying the materials,such as paste state, cake state, thixotropy,thermal senstive powder and particles.Our factory is equipped with the testing sample machine,which can be used for carrying out the drying tests of various feeds for our users and for to provide the parameters to select the applicable machine.
Working principle
Hot air enters into drying chamber from the bottom of dryer with appropriate spouting speed. Raw material is crushed by dis-integrator and dried by hot air. After being crushed, raw material could have bigger surface area, bigger surface area of raw material and speed difference between raw material with hot air increase drying efficiency.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
Feature
1 There are several feeding systems available, we can get stable stable feeding without bridging phenomenon
2 There has cooling system on agitating part of dryer, avoiding over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final moisture content of product is adjustable.
6 It could increase bulk density of product compared with other drying equipments
7 There has high spiral air speed inside dryer, drying time is short, it could prevent wall-stick problem, and metamorphism of heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying efficiency.
10 Strong disintegrating system and spiral hot air could crush material, and obtain fine, uniform product.
