Product Details
Place of Origin: changzhou
Model Number: KJG hollow blade dryer
Payment & Shipping Terms
OEM Service: |
Available |
Structure: |
Wedge-shaped Hollow Paddle |
Advantage: |
Low Price， Good Quality |
Effective Volume: |
0.06-9.46m³ |
Weight: |
Customized |
Power: |
2.2-95KW |
Warranty: |
1 Year |
Application: |
Sludge, Powder, Granular |
OEM Service: |
Available |
Structure: |
Wedge-shaped Hollow Paddle |
Advantage: |
Low Price， Good Quality |
Effective Volume: |
0.06-9.46m³ |
Weight: |
Customized |
Power: |
2.2-95KW |
Warranty: |
1 Year |
Application: |
Sludge, Powder, Granular |

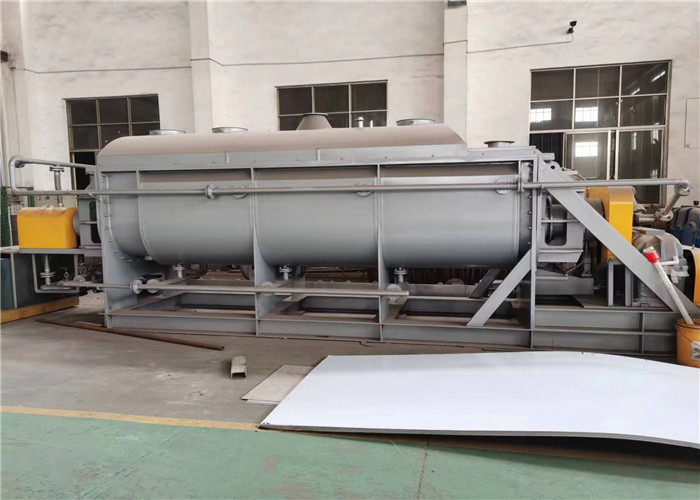

The Hollow Paddle Dryer is a type of vacuum paddle dryer, also known as blade dryer, blade hollow drying machine. It is designed to dry and solidify wet materials with the help of a vacuum system. It features a hollow paddle design that provides a large drying surface area and high drying efficiency. The hollow paddle dryer is made of high-quality stainless steel 304/316L material, and the weight, pressure, revolution and other parameters can be customized according to customer requirements. In addition, it also comes with a 1-year warranty.
| Parameter | Value |
|---|---|
| Material | SS304 316L |
| Revolution | Customized |
| Size | Customized |
| Structure | Wedge-shaped Hollow Paddle |
| Warranty | 1 Year |
| Advantage | Low Price, Good Quality |
| After-sales Service | Provided |
| OEM Service | Available |
| Heat Transfer Area | 2.7-110 ㎡ |
| Power | 2.2-95KW |
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
The KJG hollow blade dryer is the perfect choice for drying sludge, powder and granular materials, with a heat transfer area of 2.7-110 ㎡. It has a model number of KJG and is made in Changzhou. The warranty is for 1 year.
This hollow blade dryer has a variety of heating sources, including steam, hot water and electricity. The vacuum paddle dryer is a great choice for drying a range of materials, with customized sizes for different needs.
The hollow blade dryer can be used for a range of applications, from sludge, powder and granular drying. It is a great choice for those who need a reliable and highly efficient drying process.
The KJG hollow blade dryer is the perfect choice for a range of drying needs, with a range of heating sources and customized sizes. It has a one-year warranty and is made in Changzhou.
We provide technical support and services for Hollow Paddle Dryer, including:
Packaging and Shipping for Hollow Paddle Dryer:
The Hollow Paddle Dryer will be securely packed in wooden crates with foam padding to ensure safe arrival. Shipping will be arranged with the customer’s preferred carrier and all necessary documentation will be provided prior to departure.
