Product Details
Place of Origin: changzhou
Model Number: Double-cone vacuum dryer
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 12,000
Packaging Details: exporting package
Delivery Time: 30-60
Payment Terms: T/T
Supply Ability: 1-30 set/month
Temperature Accuracy: |
±1℃ |
Drying Efficiency: |
90% |
Working Volume: |
50-2500L |
Pressure Of Jacket: |
0.3Mpa |
Total Volume: |
100-500L |
Product Name: |
Vacuum Drying Machine |
Weight: |
825-6000kg |
Pressure Inside The Tank: |
-0.09~0.096Mpa |
Temperature Accuracy: |
±1℃ |
Drying Efficiency: |
90% |
Working Volume: |
50-2500L |
Pressure Of Jacket: |
0.3Mpa |
Total Volume: |
100-500L |
Product Name: |
Vacuum Drying Machine |
Weight: |
825-6000kg |
Pressure Inside The Tank: |
-0.09~0.096Mpa |

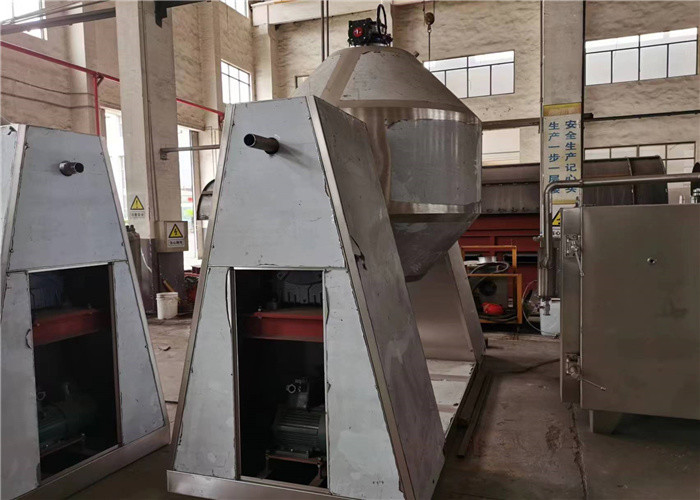

Vacuum Drying Machine is a kind of conical vacuum drying machine, which has double conical dryer for faster and more efficient drying. It is equipped with microcomputer control and LED digital display, and has a temperature accuracy of ±1℃. With its advanced technology and sophisticated design, it is an ideal choice for multiple purposes. It is also reliable and durable, providing our customers with a 1 year warranty.
| Technical Parameter | Detail |
|---|---|
| Product Name | Vacuum Drying Machine |
| Working Volume | 50-2500L |
| Display Method | LED Digital Display |
| Control Method | Microcomputer Control |
| Heating area | 1.16-14.1㎡ |
| Heating Method | Hot Water/Steam/Thermal Oil |
| Warranty | 1 Year |
| Pressure inside the tank | -0.09~0.096Mpa |
| Pressure of jacket | 0.3Mpa |
| Weight | 825-6000kg |
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
The Double-cone Vacuum Dryer Machine from Changzhou is a highly reliable and efficient conical vacuum drying machine. With a minimum order quantity of one, this machine is available for a price of 12,000. The machine is packed in an exporting package for secure delivery within 30-60 days after payment. The company is capable of delivering 1-30 sets per month.
The Vacuum Dryer Machine is equipped with a LED Digital Display to indicate operating conditions. The heating can be done using Hot Water, Steam or Thermal Oil, depending on the requirements. The total volume of the machine is 100-500L, and the temperature accuracy is ±1℃. The pressure of the jacket is 0.3Mpa.
This Double-cone Vacuum Extractor is a great choice for industrial drying applications. Its high accuracy and pressure make it ideal for drying of materials that require accurate temperatures. The machine can also be used for extraction and concentration of various liquids. This makes it a highly versatile machine for industrial purposes.
Model Number: Double-cone vacuum dryer
Place of Origin: changzhou
Minimum Order Quantity: 1
Price: 12,000
Packaging Details: exporting package
Delivery Time: 30-60
Payment Terms: T/T
Supply Ability: 1-30 set/month
Working Volume: 50-2500L
Material of Chamber: SS304 316L
Power Supply: 220V/50HZ
Power: 0.75KW-7.5KW
Product Name: Vacuum Drying Machine
At Vacuum Drying Machine, we provide comprehensive technical support and service to all of our customers. We have a team of knowledgeable and experienced technicians who can provide expert assistance with all of our products and services.
We offer telephone and email support, as well as on-site visits if necessary. Our technicians are available to answer any questions or help with any issues you may have. We also provide preventive maintenance services to ensure that your Vacuum Drying Machine is operating at optimal performance.
We are committed to providing our customers with the best possible service and technical support. If you have any questions, please do not hesitate to contact us.
