Product Details
Place of Origin: changzhou
Model Number: Double-cone vacuum dryer
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 12,000
Packaging Details: exporting package
Delivery Time: 30-60
Payment Terms: T/T
Supply Ability: 1-30 set/month
Control Method: |
Microcomputer Control |
Pressure Of Jacket: |
0.3Mpa |
Warranty: |
1 Year |
Working Volume: |
50-2500L |
Material Of Chamber: |
SS304 316L |
Temperature Range: |
Room Temperature ~ 200℃ |
Drying Efficiency: |
90% |
Total Volume: |
100-500L |
Control Method: |
Microcomputer Control |
Pressure Of Jacket: |
0.3Mpa |
Warranty: |
1 Year |
Working Volume: |
50-2500L |
Material Of Chamber: |
SS304 316L |
Temperature Range: |
Room Temperature ~ 200℃ |
Drying Efficiency: |
90% |
Total Volume: |
100-500L |

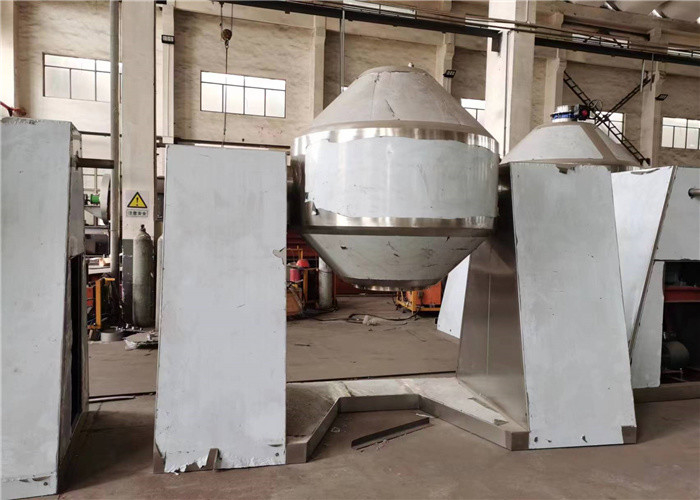

Vacuum Dryer Machine is a kind of double conical dryer which operates under vacuum. It features a jacket pressure of 0.3Mpa, a wide range of heating area from 1.16 to 14.1㎡, and a material of chamber made of SS304 316L. Moreover, it can be heated through hot water, steam or thermal oil, and its weight varies from 825 to 6000kg.
This Vacuum Dryer Machine is designed to dry wet materials, making it a perfect choice for chemical and pharmaceutical industries. It is capable of removing moisture from the material quickly and efficiently with a gentle vacuum process, leading to excellent drying results.
The Vacuum Dryer Machine is a reliable and effective drying solution for a variety of materials and applications. It is a great choice for users who need a high level of accuracy and precision in their drying process.
| Name | unit | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| working volume | L | 50 | 100 | 175 | 250 | 500 | 1000 | 1500 | 2000 | 2500 |
| heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 4.61 | 7.5 | 10.2 | 12.1 | 14.1 |
| speed | rmp | 6 | 6 | 6 | 6 | 6 | 5 | 4 | 4 | 4 |
| power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2665 | 3055 | 3530 | 3800 | 4180 |
| total weight | kg | 825 | 1050 | 1350 | 1650 | 2070 | 3000 | 4500 | 5350 | 6000 |
The Vacuum Dryer Machine is a double-cone vacuum dryer designed in Changzhou, China. It is suitable for a variety of drying requirements and can be ordered with a minimum quantity of 1. The price of the product is 12,000, and it can be safely packaged for exporting. Delivery time for the product is 30-60 days after payment is made, and the supply ability of the product is 1-30 set/month. The power supply of the product is 220V/50HZ, with a heating area ranging from 1.16-14.1㎡, and a power range from 0.75KW-7.5KW. The heating method of the two cones vacuum dryer can be hot water/steam/thermal oil.
Two cones vacuum Dryer, Two cones vacuum Dryer, Conical vacuum drying machine, Changzhou, Exporting package, T/T, 1-30 set/month, 100-500L, Microcomputer Control, 0.3Mpa, 1.16-14.1㎡, 90%
We provide comprehensive technical support and service for our Vacuum Drying Machines. Our team of experts can provide advice on installation, operation, maintenance and repair of the machines. They are available to answer any questions you might have about the product.
We also offer on-site training and support for approved customers. Our technicians can help you set up the Vacuum Drying Machine and familiarize you with its operation. In addition, we can provide remote assistance for maintenance and repair.
We are committed to providing the best possible customer service and support. If you have any questions or concerns about our Vacuum Drying Machines, please do not hesitate to contact us.
